Proton exchange membrane (PEM)

Classification:

Green Hydrogen Energy

Inquiry

Product Description

Commodity name: Proton exchange membrane (PEM)

Proton exchange membrane (PEM)

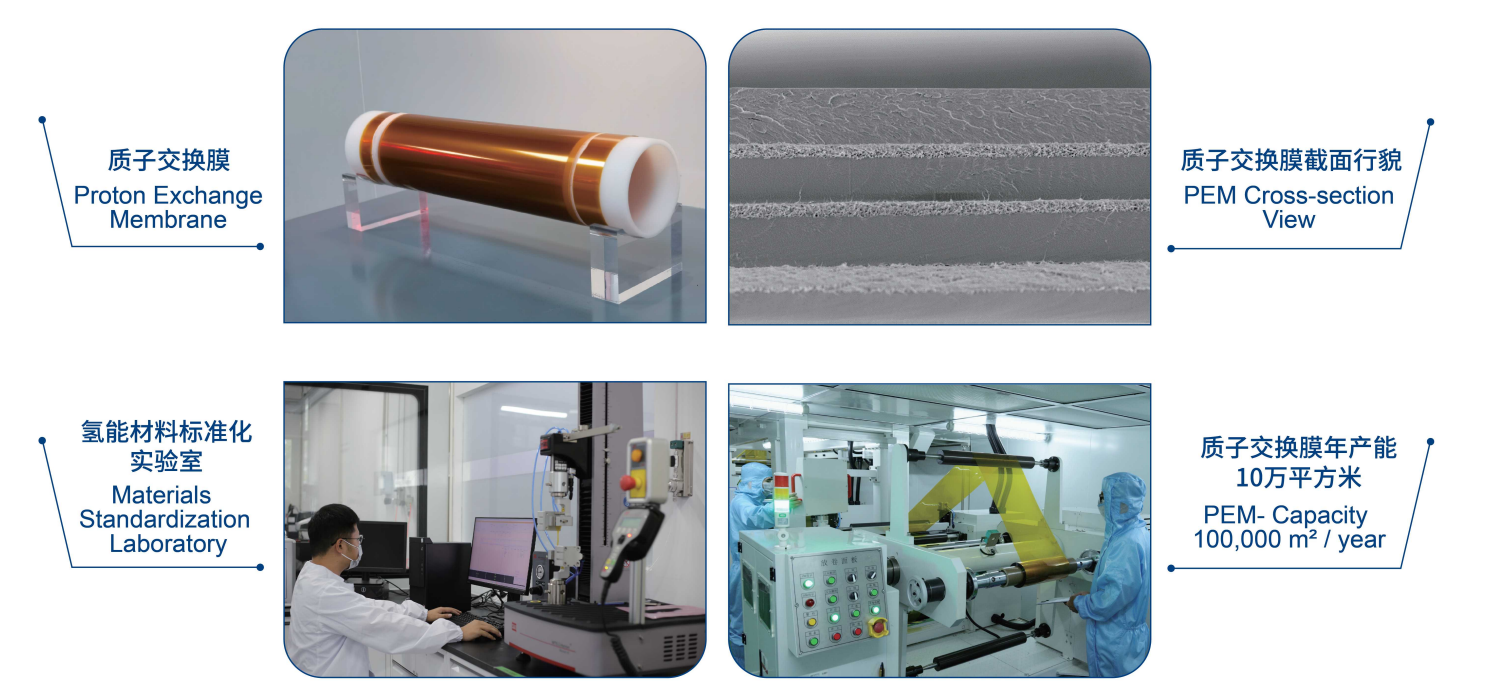

Our PEM is PFSA with a reinforced layer structure,which can be used in a variety of applications such as fuel cells and PEM electrolyzer.The production line has an annual capacity of 100,000 square meters

PEM Features
High ion exchange capacity
High ionic conductivity
Low battery internal resistance
Long durability

Model selection

Item	Parameter	Model selection
Item	Parameter	PEM-12	PEM-80
1	Thickness（um)	12±1	80±3
2	Water absorption(%)	≤40	≤40
3	Degree of swelling	≤5	≤6
4	Tensile strength MD（MPa）	≥40	≥30
4	Tensile strength TD（MPa）	≥40	≥30
5	Proton Conductivity(ms/cm) (80℃,80% RH)	≥120	≥80
